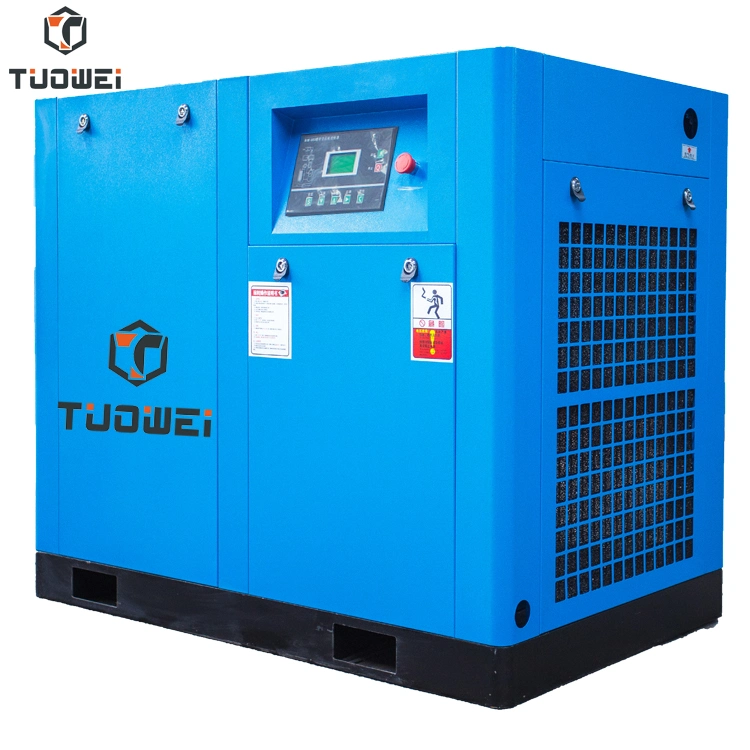

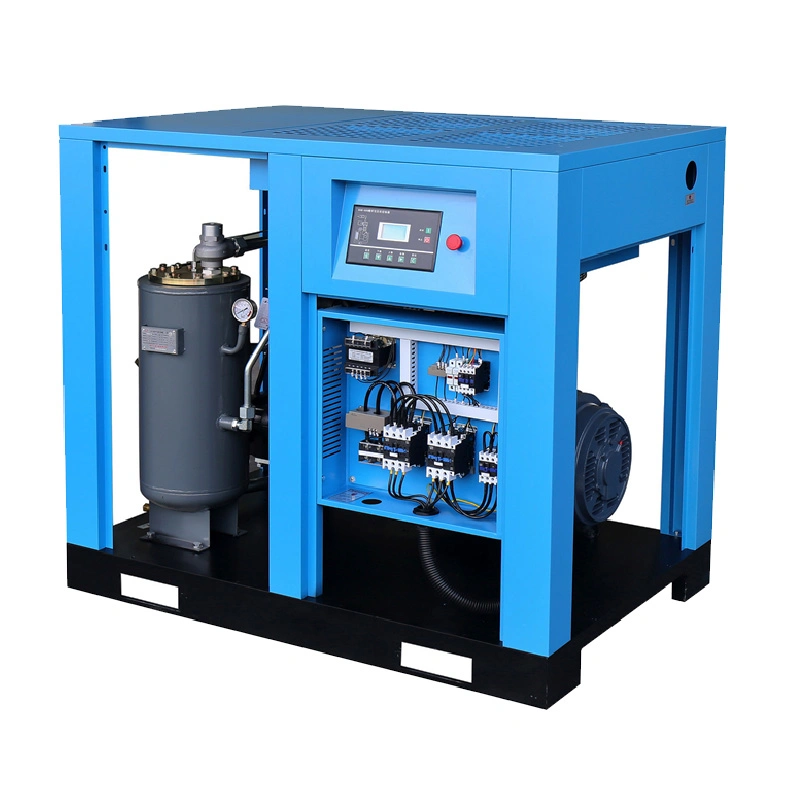

| Model | SGD 37 | |||
| Type of Cooling | Air Cooling/Water cooling | |||
| Working Pressure(psi/ bar) | 102/7 | 116/8 | 145/10 | 174/12 |
| Air Delivery(cfm / m3/min) | 240.1/6.8 | 218.9/6.2 | 197.7/5.6 | 176.6/5.0 |
| Motor Power(kw/hp) | 37/50 | |||
| Starting Mode | Star triangle start | |||
| Type of Driving | Driect driven | |||
| Dimension (mm) | 1550*1000*1345 | |||
| Weight(kg) | 650 | |||
| Air Outlet Pipe Diameter | 1 /1 /2" | |||
| Voltage | 380(220,400,415)V/50(60)Hz/3Phase or Can be customized | |||
| Exhaust Oil Volum | 1~3ppm | |||
| Noise (db) | 68±2 | |||
| Outlet Air Humidity (ºC) | ambient temperature+15ºC | |||
| Model | Working Pressure | Capacity | Motor Power | Driven Method | Cooling Method | Dimension(mm) | Net Weight | Air Outlet Pipe Diameter | ||||
| Psi | bar | Cfm | m3/min | kw/hp | L | W | H | KGS | ||||
| SGD08 | 102 | 7 | 42.4 | 1.2 | 7.5/10 | Direct Drive | Air Cooling / Water Cooling | 900 | 670 | 850 | 200 | 1/2'' |
| 116 | 8 | 38.8 | 1.1 | |||||||||
| 145 | 10 | 33.5 | 0.95 | |||||||||
| 174 | 12 | 28.3 | 0.8 | |||||||||
| SGD11 | 102 | 7 | 58.3 | 1.65 | 11/15 | 1080 | 750 | 1020 | 280 | 3/4'' | ||
| 116 | 8 | 53 | 1.5 | |||||||||
| 145 | 10 | 45.9 | 1.3 | |||||||||
| 174 | 12 | 38.8 | 1.1 | |||||||||
| SGD15 | 102 | 7 | 88.3 | 2.5 | 15/20 | 1080 | 750 | 1020 | 300 | 3/4'' | ||
| 116 | 8 | 81.2 | 2.3 | |||||||||
| 145 | 10 | 74.2 | 2.1 | |||||||||
| 174 | 12 | 67.1 | 1.9 | |||||||||
| SGD18 | 102 | 7 | 113 | 3.2 | 18.5/25 | 1380 | 850 | 1185 | 430 | 1'' | ||
| 116 | 8 | 105.9 | 3 | |||||||||
| 145 | 10 | 95.3 | 2.7 | |||||||||
| 174 | 12 | 84.7 | 2.4 | |||||||||
| SGD22 | 100 | 7 | 134.2 | 3.8 | 22/30 | 1380 | 850 | 1185 | 450 | 1'' | ||
| 116 | 8 | 127.1 | 3.6 | |||||||||
| 145 | 10 | 113 | 3.2 | |||||||||
| 174 | 12 | 95.3 | 2.7 | |||||||||
| SGD30 | 102 | 7 | 187.1 | 5.3 | 30/40 | 1380 | 850 | 1185 | 500 | 1'' | ||
| 116 | 8 | 176.6 | 5 | |||||||||
| 145 | 10 | 158.9 | 4.5 | |||||||||
| 174 | 12 | 141.2 | 4 | |||||||||
| SGD37 | 102 | 7 | 240.1 | 6.8 | 37/50 | 1500 | 1000 | 1345 | 650 | 11/2" | ||
| 116 | 8 | 218.9 | 6.2 | |||||||||
| 145 | 10 | 197.7 | 5.6 | |||||||||
| 174 | 12 | 176.6 | 5 | |||||||||
| SGD45 | 102 | 7 | 261.3 | 7.4 | 45/60 | 1500 | 1000 | 1345 | 680 | 11/2" | ||
| 116 | 8 | 247.2 | 7 | |||||||||
| 145 | 10 | 218.9 | 6.2 | |||||||||
| 174 | 12 | 197.7 | 5.6 | |||||||||
| SGD55 | 102 | 7 | 353.1 | 10 | 55/75 | 1800 | 1250 | 1670 | 1150 | 2" | ||
| 116 | 8 | 339 | 9.6 | |||||||||
| 145 | 10 | 300.1 | 8.5 | |||||||||
| 174 | 12 | 268.4 | 7.6 | |||||||||
| SGD75 | 102 | 7 | 473.2 | 13.4 | 75/100 | 1800 | 1250 | 1670 | 1200 | 2" | ||
| 116 | 8 | 444.9 | 12.6 | |||||||||
| 145 | 10 | 395.5 | 11.2 | |||||||||
| 174 | 12 | 353.1 | 10 | |||||||||
| SGD90 | 102 | 7 | 572 | 16.2 | 90/120 | 1800 | 1250 | 1670 | 1350 | 2" | ||
| 116 | 8 | 529.7 | 15 | |||||||||
| 145 | 10 | 487.3 | 13.8 | |||||||||
| 174 | 12 | 434.3 | 12.3 | |||||||||
| SGD110 | 102 | 7 | 741.5 | 21 | 110/150 | 2300 | 1470 | 1840 | 1800 | 2 1/2'' | ||
| 116 | 8 | 699.1 | 19.8 | |||||||||
| 145 | 10 | 614.4 | 17.4 | |||||||||
| 174 | 12 | 522.6 | 14.8 | |||||||||
| SGD132 | 102 | 7 | 865.1 | 24.5 | 132/175 | 2300 | 1470 | 1840 | 1850 | 2 1/2'' | ||
| 116 | 8 | 819.2 | 23.2 | |||||||||
| 145 | 10 | 723.9 | 20.5 | |||||||||
| 174 | 12 | 614.4 | 17.4 | |||||||||
| SGD160 | 102 | 7 | 1013.4 | 28.7 | 160/200 | 2300 | 1470 | 1840 | 2000 | 2 1/2'' | ||
| 116 | 8 | 974.6 | 27.6 | |||||||||
| 145 | 10 | 868.6 | 24.6 | |||||||||
| 174 | 12 | 759.2 | 21.5 | |||||||||
| SGD185 | 102 | 7 | 1129.9 | 32 | 185/250 | 3150 | 1980 | 2152 | 3500 | DN85 | ||
| 116 | 8 | 1073.4 | 30.4 | |||||||||
| 145 | 10 | 967.5 | 27.4 | |||||||||
| 174 | 12 | 875.7 | 24.8 | |||||||||
| SGD220 | 102 | 7 | 1271.2 | 36 | 220/300 | 3150 | 1980 | 2152 | 3800 | DN85 | ||
| 116 | 8 | 1211.1 | 34.3 | |||||||||
| 145 | 10 | 1066.4 | 30.2 | |||||||||
| 174 | 12 | 978.1 | 27.7 | |||||||||
| SGD250 | 102 | 7 | 1483 | 42 | 250/350 | 3150 | 1980 | 2152 | 4000 | DN85 | ||
| 116 | 8 | 1430.1 | 40.5 | |||||||||
| 145 | 10 | 1348.8 | 38.2 | |||||||||
| 174 | 12 | 1218.2 | 34.5 | |||||||||
| SGD315 | 102 | 7 | 1800.8 | 51 | 315/430 | 4000 | 1980 | 2152 | 6000 | DN110 | ||
| 116 | 8 | 1772.6 | 50.2 | |||||||||
| 145 | 10 | 1571.3 | 44.5 | |||||||||
| 174 | 12 | 1412.4 | 40 | |||||||||
| SGD355 | 102 | 7 | 2259.8 | 64 | 355/480 | 4000 | 1980 | 2152 | 6500 | DN110 | ||
| 116 | 8 | 2153.9 | 61 | |||||||||
| 145 | 10 | 1995 | 56.5 | |||||||||
| 174 | 12 | 1730.2 | 49 | |||||||||
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
