Filtration filter bag cage filter bag support for dust collector filter bag


Dust Collector introduction

The material of  stainless steel filter cage is 304 stainless steel . Stainless steel filter cage has good heat resistance and  anti corrosion.  And its service life is several times or even ten times that of carbon steel. It is often used in special industries such as food processing factory, waste incineration, non-ferrous metal smelting and chemical production.



Specifications

Types:

Round Style/Flat Style/Envelope Style/ Special Style

Number Of Wires:

8/10/12/16/20/24 vertical wires

Ring Space:

Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)

Cage Diameter:

Cage diameters range from 4 inch to 8 inch (100mm to 200mm)

Wire thickness:

Wire thickness ranges are 2mm to 5mm

Material:

Carbon Stee, Galvanized Steel, Stainless Steel

Finishment:

Epoxy, PVC vinyl coating

Packaging:

Cages are packed in custom designed cartons

Usage:

Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.



Advantages:

1.no corrosion

2.no damage

3.3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5.prominent effect in removing dust from Filter by pulsing

6.easy to install
7.no ventury installation required

Standard Technical Data

Round Style

Diameter(mm)

Bag Diameter(mm)

Length(mm)

115

120

2000,2400 2800,
3200,3600,4000,
4400,4800,5200,
5600,6000,7000



125

130

147

152

195

200

Flat Style

Perimeter

Bag Perimeter

Length(mm)

800

800

2000 3000 4000
5000 6000



900

900

Envelope Style

Length Width Thickness

Bag Length Width Thickness

1500X750x25mm

1500X750x25mm



Product Advantage


Round shape filter cage

1. The circular structure is adopted, and the longitudinal reinforcement and the reverse supporting ring of the bag cage are evenly distributed.
2. Sufficient strength and stiffness to prevent damage and deformation.
3. The top is equipped with a cold stamping short tube to ensure the safety of the cage and the protection of the filter bag.



Filter cage material

1. Stainless steel is used to form a skeleton production line for one time
2. Ensure straightness and distortion. Filter bag frame is smooth and burr free after welding.
3.There is sufficient strength without soldering, no soldering, virtual welding and missing welding.



Galvanizing technology

1.Zinc layer is strong, wear-resistant and corrosion resistant.
2.It avoids the corrosion of the skeleton surface and the adhesion of filter bags after a period of time.
3.The bag is guaranteed to be smooth and the damage to the bag is reduced during the bag changing process.

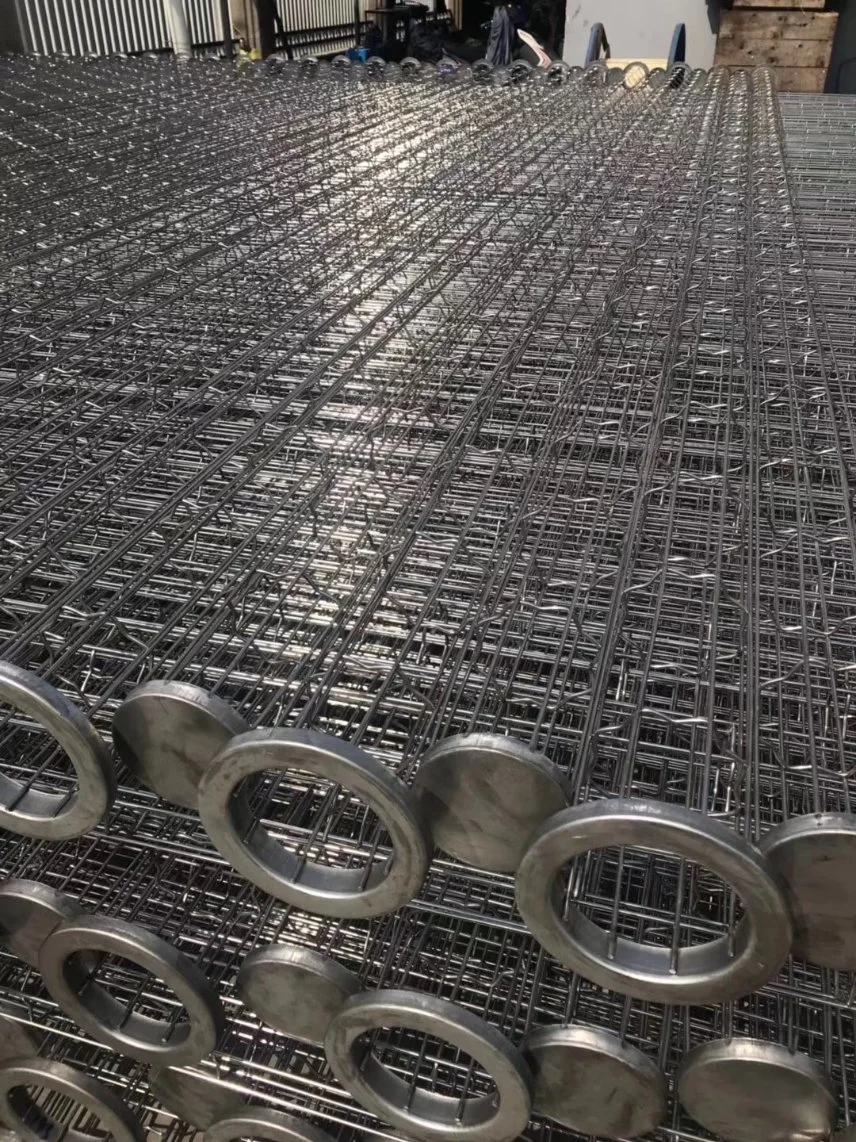

Filtration Filter Bag Cage Filter Bag Support for Dust Collector Filter Bag

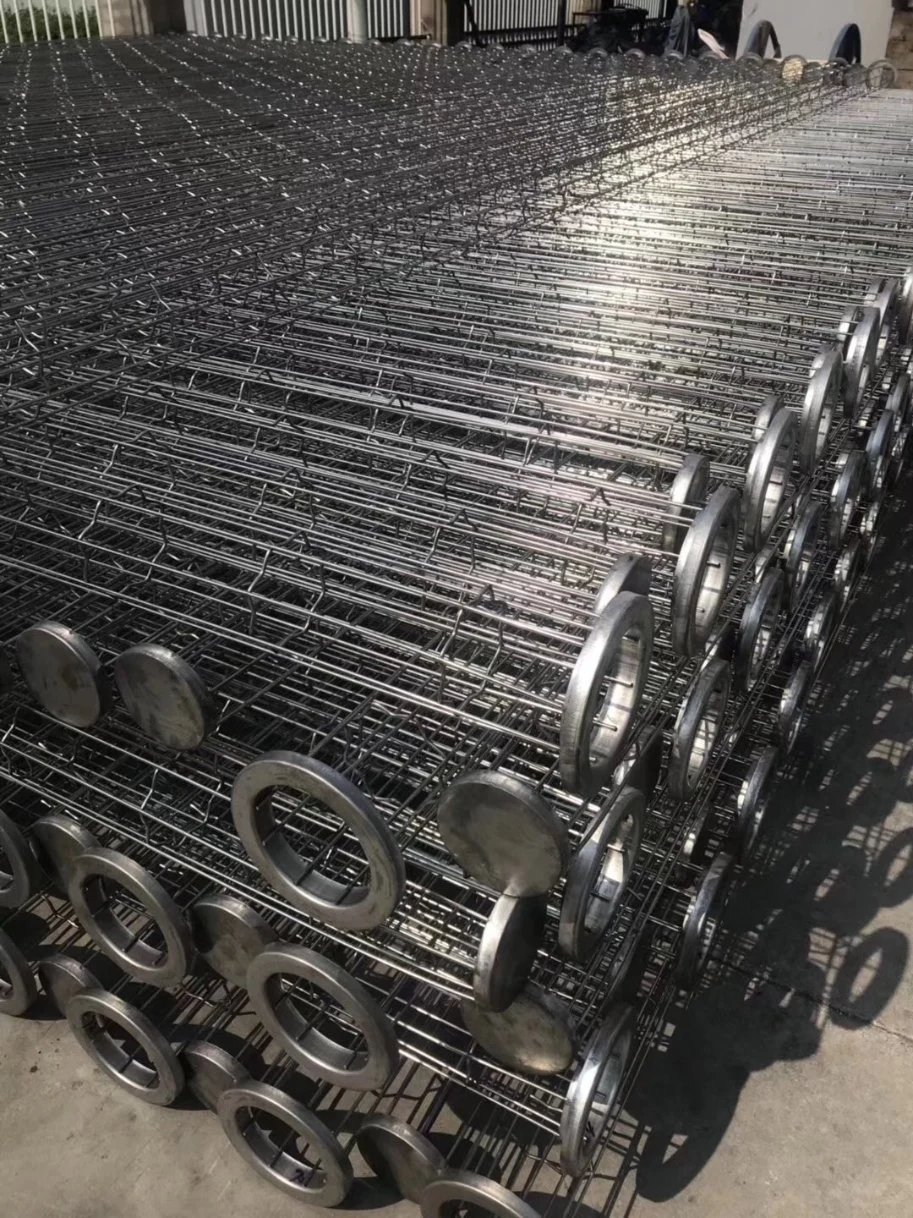

Filtration Filter Bag Cage Filter Bag Support for Dust Collector Filter Bag
Filtration Filter Bag Cage Filter Bag Support for Dust Collector Filter Bag





Application

1) Welding fume, foundry

2) Food, pharmaceutical

3) Shot blasting

4) Tobacco, metal, painting

5) Energy

6) Woodworking

7) Cement production

8) Powder processing

9) Steel melting

10) Material handling

11) Primary metals, including steel-making

12) Metals fabrication: grinding, sawing, sanding, polishing

13) Papermaking

14) Mixing and blending options

15) Mining

16) Glass Plants

17) Battery Plants

18) Other areas.
