Fluorescence Filter
Fluorescent filter is a key component of biomedical and life science instruments.The typical characteristics of fluorescent filters are deep cutoff depth, small spontaneous fluorescence,
and good transmittance surface shape, which is beneficial to the extraction of fluorescence imaging.Therefore, the better fluorescent filter use a single piece of colorless transparent glass as the
base, coating the two surfaces of the glass.Compared with conventional fluorescent filters with multi-film gluing or color-glass assisted cutoff, single-chip fluorescent filters have obvious advantages
in fluorescence imaging. However, the single-chip fluorescent filters have high cost due to the high difficulty in production.
Features
High wavelength positioning accuracy
Hard and firm coating film
Good heat resistance and moisture resistance
Long service life(over 5 years under general condition)
Modules for Narrow bandpass filter
| CWL(nm) | FWHM(nm) | Tmax(%) | Blocking Wavelength Range | Blocking | Size |
| 295 | 12+/-2nm | T≥20% | 200-2000nm | OD5(0.001%) | φ10 φ12 φ15 up to 50mm |
| 420 | 8+/-2nm | T≥45% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 50mm |
| 465 | 8+/-2nm | T≥45% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 50mm |
| 510 | 8+/-2nm | T≥45% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 80mm |
| 525 | 8+/-2nm | T≥45% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 80mm |
| 562 | 8+/-2nm | T≥45% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 80mm |
| 589 | 8+/-2nm | T≥45% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 80mm |
| 605 | 8+/-2nm | T≥45% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 80mm |
| 620 | 8+/-2nm | T≥45% | 200-1100nm | OD6 | φ10 φ12 φ15 |
| 625 | 8+/-2nm | T≥45% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 80mm |
| 665 | 8+/-2nm | T≥45% | 200-2000nm | OD6 | |
| 730 | 10+/-2nm | T≥80% | 200-1100nm | OD5(0.001%) | φ10 φ12 φ15 up to 50mm |
| 870 | 30+/-2nm | T≥85% | 200-1200nm | OD5 | φ10 φ12 |
| 900 | 25+/-2nm | T≥85% | 200-1200nm | OD5 | φ30 |
| 915 | 30+/-2nm | T≥85% | 200-1200nm | OD5 | φ10 φ12 |
| 920 | 20+/-2nm | T≥20% | 200-1200nm | T<10-4 | φ30 |
Manufacture Specifications
| Diameter | 2mm to 200mm |
| Diameter Tolerance | +0.00/-0.1 or customer size |
| Material | N-BK7,H-K9L,Sapphire,Fused Silica(JGS1),Caf2,ZnSe,Si,Ge,etc. |
| Surface Quality | 80-50 to 10/5 |
| Flatness | 1/4 lambda |
| Thickness Tolerance | +0.00/-0.05mm |
| Standard wavelength | 270nm,311,360,380,473,532,650,780,808,850,904,940,1064 and 1900nm. |
| FWHM | 5nm to 50nm |
| Transmission | 60% to 99% |
| Average blocking | OD6 |
Sample Curves-540nm
Our Factory
Testing
Exhibition Show
Sunday Optics attended Laser World in Laser World in Munich,Frankfult Exhibition,SPIE every year.
Related Production Line

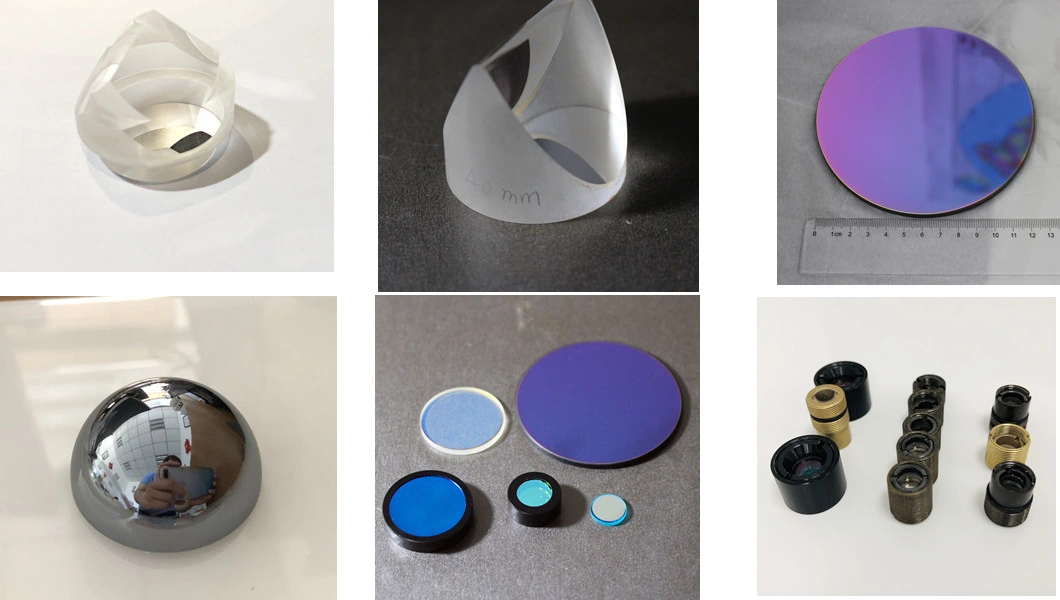

sunday optics also manufacture high precison Lens,prism, powell lens, collimator lens, glass filter, and mirror.
FAQ:
1. Are you manufacturure? can we see your factory?
Yes.
2. Do you have test report?
Yes, we offer full size test report, about size, focal length, flatness, coating curve, coating plate.
3.What is your production quantity everymonth?
It depands on the lens size and precison.
4.What is the Minimum quantity?
1pc
5.What is your delivery time?
samples: 10-20days
6.How should we do if the quality is not good?
Repair or return money.
