PRODUCT INTRODUCTION:
WT-APF active power filter (APF) is a new type of power electronic device used to dynamically suppress harmonics and compensate reactive power. It detects the load current with sampling circuit, extracts the harmonic component in the load current through internal DSP calculation, and drives IGBT, The control inverter generates a harmonic current which is equal to the harmonic current of the load and in the opposite direction and injects into the power grid to achieve the purpose of filtering. According to the same principle, APF can also compensate the negative sequence current component of asymmetric three-phase circuit, to realize the three-phase unbalance compensation and reactive power compensation.
Comprehensive functions: intelligent harmonic filtering, dynamic reactive power compensation and three-phase load balancing can be realized at the same time
Excellent performance: with nearly perfect harmonic filtering effect and continuous dynamic reactive power compensation, the power factor is increased to more than 0.95 to ensure load balance and safe operation of equipment
Advanced technology: continuous, dynamic tracking compensation, 40us response to load change, 10ms compensation. The filtering performance is not affected by the system impedance. The harmonic compensation characteristics are not affected by the frequency change of the power grid, and the compensation ability is not limited by the grid voltage.
MODEL DESCRIPTION:
SPECIFICATION SHEET:
PRODUCT PARAMETERS:
TECHNICAL PERFORMANCE:
COMMUNICATION MONITORING:
SCOPE OF APPLICATION:
W-APF3L is suitable for harmonic filtering of three-phase three wire industrial load (rated voltage is 380V, 660V, 690V, 1140V system), such as rectifier, frequency converter, large UPS, intermediate frequency furnace, electric arc furnace and other nonlinear loads
W-APF4L is suitable for harmonic filtering of three-phase four wire (rated voltage 380V / 220V), such as lighting equipment of commercial office building, computer, UPS, elevator, frequency conversion air conditioning and other nonlinear loads. It is suitable for harmonic filtering of primary and secondary harmonic current generated by neutral line of nonlinear load.
WT-APF active power filter (APF) is a new type of power electronic device used to dynamically suppress harmonics and compensate reactive power. It detects the load current with sampling circuit, extracts the harmonic component in the load current through internal DSP calculation, and drives IGBT, The control inverter generates a harmonic current which is equal to the harmonic current of the load and in the opposite direction and injects into the power grid to achieve the purpose of filtering. According to the same principle, APF can also compensate the negative sequence current component of asymmetric three-phase circuit, to realize the three-phase unbalance compensation and reactive power compensation.
Comprehensive functions: intelligent harmonic filtering, dynamic reactive power compensation and three-phase load balancing can be realized at the same time
Excellent performance: with nearly perfect harmonic filtering effect and continuous dynamic reactive power compensation, the power factor is increased to more than 0.95 to ensure load balance and safe operation of equipment
Advanced technology: continuous, dynamic tracking compensation, 40us response to load change, 10ms compensation. The filtering performance is not affected by the system impedance. The harmonic compensation characteristics are not affected by the frequency change of the power grid, and the compensation ability is not limited by the grid voltage.

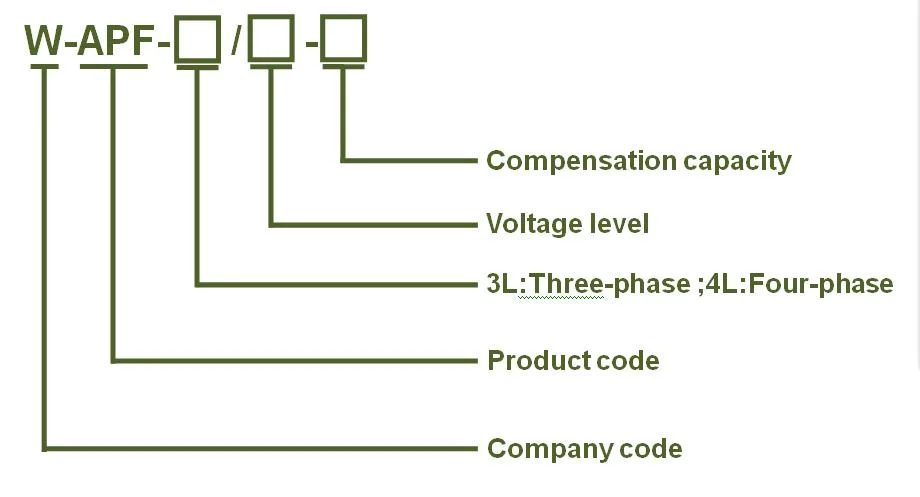

MODEL DESCRIPTION:
SPECIFICATION SHEET:
| Wall mounted | ||||||||||
| type | width (mm) | height (mm) | depth (mm) | mounting hole (mm) | weight | |||||
| L | L1 | H | H1 | D | D1 | D2 | d | i | Kg | |
| 50A | 381 | 375 | 178 | 170 | 623 | 580 | 550 | 600 | 300 | 30 |
| 75A | 506 | 500 | 208 | 200 | 623 | 580 | 550 | 600 | 400 | 38 |
| 100A | 506 | 500 | 248 | 240 | 653 | 616 | 580 | 630 | 400 | 46 |
| 150A | 506 | 500 | 278 | 270 | 710 | 670 | 638 | 685 | 400 | 58 |
| Rack-mounted | ||||||||||
| type | width (mm) | height (mm) | depth (mm) | mounting hole (mm) | weight | |||||
| L | L1 | H | D | D1 | d | i | h1 | D2 | Kg | |
| 50A | 445 | 375 | 170 | 580 | 550 | 413 | 100 | 35 | 405 | 30 |
| 75A | 570 | 500 | 200 | 580 | 500 | 538 | 120 | 38.5 | 535 | 38 |
| 100A | 570 | 500 | 240 | 616 | 580 | 538 | 160 | 40 | 535 | 46 |
| 150A | 570 | 500 | 270 | 670 | 638 | 538 | 190 | 40 | 535 | 58 |
| Three-phase Three-wire Tri-level Three-leg APF | ||||||
| Type | Rated voltage (V) | Rated current (A) | Rated frequency (Hz) | Dimension(mm) Width * depth * height | weight (kg) | Installation mode |
| APF3L-400/45 | 400 | 45 | 50/60 | 800*600*1500 | 140 | vertical |
| APF3L-400/60 | 400 | 60 | 50/60 | 800*600*1500 | 140 | vertical |
| APF3L-400/80 | 400 | 80 | 50/60 | 800*600*1800 | 180 | vertical |
| APF3L-400/100 | 400 | 100 | 50/60 | 800*600*1800 | 180 | vertical |
| APF3L-400/150 | 400 | 150 | 50/60 | 800*600*1800 | 250 | vertical |
| APF3L-400/200 | 400 | 200 | 50/60 | 800*600*2200 | 300 | vertical |
| APF3L-400/250 | 400 | 250 | 50/60 | 800*600*2200 | 300 | vertical |
| APF3L-400/300 | 400 | 300 | 50/60 | 900*600*2200 | 400 | vertical |
| APF3L-400/700 | 400 | 700 | 50/60 | 800*600*2200*3 | 400*3 | vertical |
| Three-phase Four-wire Tri-level Four-leg APF | ||||||
| Type | Rated voltage (V) | Rated current (A) | Rated frequency (Hz) | Dimension(mm) Width * depth * height | weight (kg) | Installation mode |
| APF3L-400/45 | 400 | 20 | 50/60 | 800*600*1500 | 80 | vertical |
| APF3L-400/60 | 400 | 30 | 50/60 | 800*600*1500 | 90 | vertical |
| APF3L-400/80 | 400 | 45 | 50/60 | 800*600*1800 | 120 | vertical |
| APF3L-400/100 | 400 | 80 | 50/60 | 800*600*1800 | 220 | vertical |
| APF3L-400/150 | 400 | 100 | 50/60 | 800*600*1800 | 250 | vertical |
| APF3L-400/200 | 400 | 150 | 50/60 | 800*600*2200 | 250 | vertical |
| APF3L-400/250 | 400 | 200 | 50/60 | 800*600*2200 | 300 | vertical |
| APF3L-400/300 | 400 | 250 | 50/60 | 900*600*2200 | 300 | vertical |
| APF3L-400/700 | 400 | 700 | 50/60 | 800*600*2200*3 | 400*3 | vertical |
PRODUCT PARAMETERS:
| Working voltage | 380V(-40%~+40%) ; 690V(-20%~+20%) |
| Working frequency | 50/60Hz±5Hz |
| Wiring mode | Three-phase three-wire ; Three-phase four-wire |
| Current sampling | 5A(CT:100/5~10000/5) |
| Current sampling position | Load side / grid side optional |
| Circuit topology | Three level |
| Number of parallel units | Up to 12 |
| Switching frequency | 21.6KHz |
| Cooling mode | Intelligent air cooling |
TECHNICAL PERFORMANCE:
| Filtering range | 2-50 times |
| Selection of filtering times | 2 ~ 50 times optional |
| Single filter setting | 2 ~ 50 times optional (can be set) |
| Overall filtering capability | THDi(Total distortion rate of harmonic current)<3% |
| Reactive power compensation | -100%~+100%(Power factor can be set) |
| Three phase unbalance | support |
| overload protection | support |
| Instantaneous response time | <100us |
| Total response time | <10ms |
| Noise | <65dB |
| Protection function | Over voltage protection, under voltage protection, short circuit protection, inverter bridge reverse protection, etc |
COMMUNICATION MONITORING:
| Expand function | The 10 channel TSC interface can operate with TSC / TSF |
| Communication interface | RS485 Network port |
| Communication protocol | General agreement on electricity;modbus protocol;YCP/IP |
| Display interface | 3 / 7 Inch Touch Screen |
| Display information | Voltage, current, power, harmonic and other grid parameters |
| Monitor | Support independent monitoring / centralized monitoring of each module |
| Fault alarm | Up to 500 alarm messages can be recorded |
USAGE ENVIRONMENT:
| Ambient temperature | -20ºC~+45ºC |
| Storage temperature | -40ºC~+65ºC |
| Relative humidity | Maximum 95% frost free |
| Altitude | Below 1500m, the power will be reduced by 1% every 100m |
| Protection level | IP20,Higher protection level can be customized |
| Installation mode | Wall mount, rack, whole machine |
| Incoming line mode | Back feed, upper feed |
SCOPE OF APPLICATION:
W-APF3L is suitable for harmonic filtering of three-phase three wire industrial load (rated voltage is 380V, 660V, 690V, 1140V system), such as rectifier, frequency converter, large UPS, intermediate frequency furnace, electric arc furnace and other nonlinear loads
W-APF4L is suitable for harmonic filtering of three-phase four wire (rated voltage 380V / 220V), such as lighting equipment of commercial office building, computer, UPS, elevator, frequency conversion air conditioning and other nonlinear loads. It is suitable for harmonic filtering of primary and secondary harmonic current generated by neutral line of nonlinear load.
